DDE5 Quickflash (edc16c31)


DDE5 EDC16C1 EDC16C31 E46 E83 Flash Tool with EWS Delete
Current version: v1.13

SKU: gjenfy Categories: ,

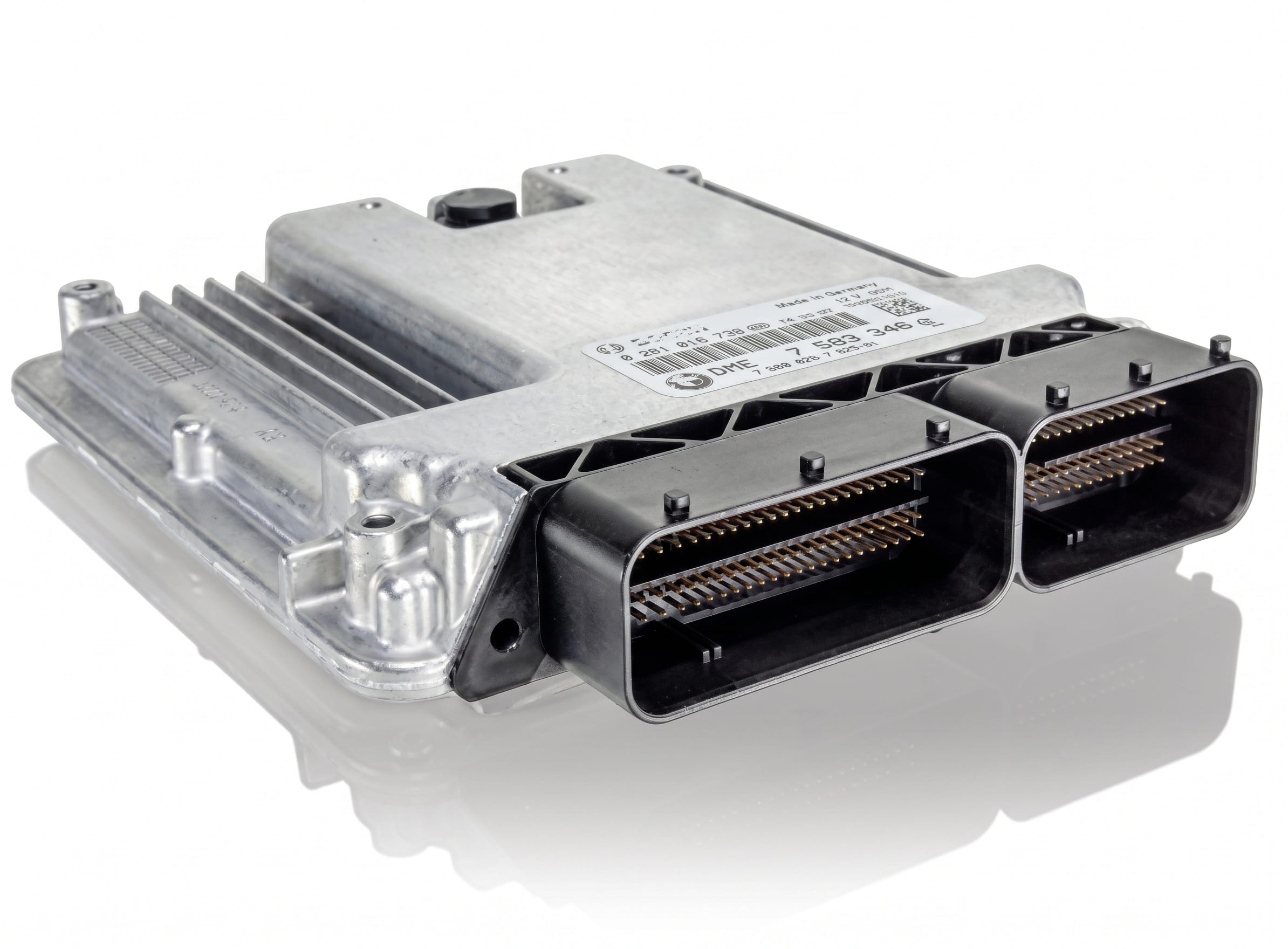

EDC16 ECU DME flash tool with EWS delete IMMO off for the BMW DDE5 EDC16C31 and EDC16C1.
These ECUs are found in e46 and e83 diesels. All through OBD port in car!

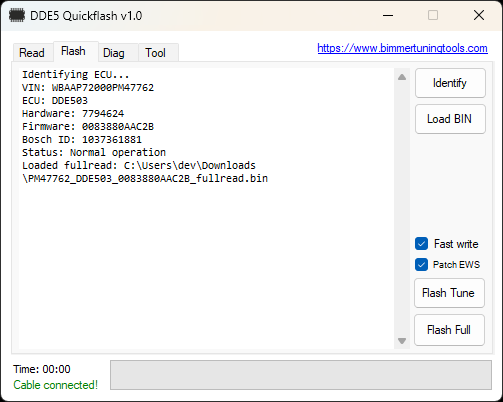

  • Full flash
  • Part flash

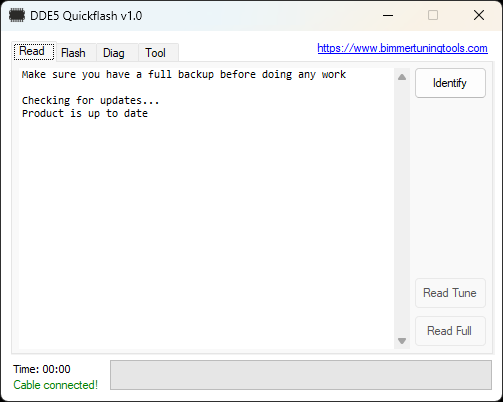

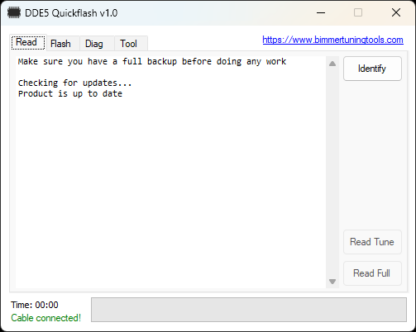

  • Full Read
  • Part read
  • EWS Delete / IMMO Off
  • Automatic checksum correction

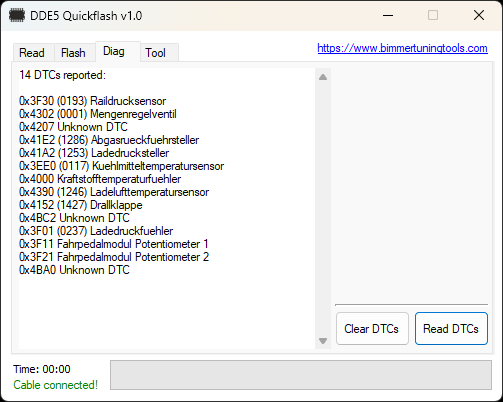

  • Allows for DTCs to be read and reset

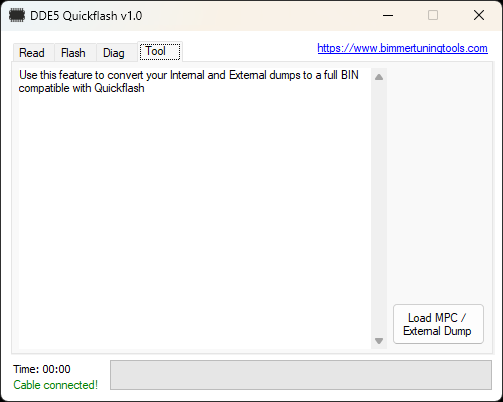

  • Ability to convert BDM dumps into OBD flashable full dump
  • Unlimited vehicle use

Note: Some e60 and e53 come with a DDE5 EDC16 and can be flashed on bench using the pinout diagram. Some later model e60 ECUs will not work with this flash tool.

After downloading, your activation license is automatically sent to the email used to purchase. Be sure you activate the license on the computer you plan to use this on as it is one license per computer!

Internet connection required while using the application

Windows 7 and newer
FT232RL(q) chipset cable  and highly recommended with ediabaslib firmware. https://www.bimmertuningtools.com/cables/

Be sure to check out DDE4 Quickflash (edc15) and DDE6 Quickflash (EDC16C35 and EDC16CP35)
